DESIGN PHILOSOPHY


Roger Sanders built his first ESL (ElectroStatic Loudspeaker) in 1972.  He quickly appreciated the superior performance that a massless electrostatic offered over conventional magnetic speakers with regards to low distortion, lack of resonances, and incredible detail.  But their problems of limited output, inability to produce deep powerful bass, and unreliability have kept him busy improving them over the last 30+ years.



The result of this lifetime of work is that Sanders Sound Systems ESLs are the only ones to have solved all the  problems and limitations of ESLs.  Roger's "Ultrastat" panels will play at ear-bleeding levels, cannot be arced, do not use or need protective circuitry, are immune to humidity, dust, and dirt, and do not need or use dust covers.  They can be driven by multi-thousand watt amplifiers without damage.  They are more rugged than conventional magnetic drivers.  They do not fail and are so robust that they come with a lifetime warranty.

DDDCherrybrickedit

The Absolute Sound has Awarded our Model 10c Electrostatic Speakers

(click image below to view award)

hpaward





Sanders Sound hits the Sweet Spot - AudiogoN

audiogonmovie


"Roger Sanders, inventor of the curved electrostatic loudspeaker, will make you rethink everything you always thought you knew about stats. He sure did (rethink everything) to the point of abandoning his own invention for a contradictory philosophy. His logic is irrefutable, his speakers are infallible, and his electronics are unstoppable. Check out this video for a crash course on electrostatic myths and mating." - Audiogon

A major part of his work was devoted to dealing with the issue of high frequency "beaming" in large, planar loudspeakers.  To deal with this issue, he invented the free-standing, curved, electrostatic panel.  This made it possible to widely-disperse the high frequencies from a large ESL.  He published this invention in Speaker Builder Magazine in 1980.  The Martin Logan company adopted his technique in their ESLs.

Roger expected that his wide-dispersion, curved panels would perform better than narrow-dispersion, planar speakers. But he discovered that the curved panel was inferior to a planer one with respect to transient response, imaging, frequency response, speaker placement, and output.    These problems caused by wide-dispersion speakers spraying their sound all over the room instead of being directed at the listener.  As a result, in a wide-dispersion speaker, the listener hears the room with all its confused and delayed reflections instead of the superb sound available directly from a planar ESL.   Roger won't compromise the quality of the sound by using his wide-dispersion design, so he abandoned it in favor of planar ESLs.  The sound from his planar speakers are superior to all others with regard to transient response, 3-dimensional imaging, and frequency response.

Full-range, crossoverless ESLs are widely believed to be the "holy grail" of loudspeakers.  In theory, using a single drive to reproduce the entire audio range, without the problems introduced by crossovers, would be ideal.  Roger has built many such speakers.  But the laws of physics cannot be circumvented.  A full-range ESL simply cannot produce deep, powerful bass or have generally high output and full dynamic range.

Roger spent 17 years developing woofer systems that would blend seamlessly with a massless ESL to produce outstanding bass and end the frustrating limitations of full-range ESLs.  His well-designed, hybrid systems are far superior to a full-range, crossoverless ESL.

While building and selling full-range ESLs is easier and less costly than a hybrid, Roger won't compromise .  Therefore all Sanders speakers are hybrids.

Crossovers are a major limitation in conventional speakers.  The passive crossovers typically used are seriously flawed and cannot be used if you want a speaker with the highest possible performance.  Electronic crossovers and bi-amplified operation are far superior to passive crossover systems and are absolutely essential for spectacular speaker performance.  Therefore, all Sanders' speakers come with electronic crossovers and bi-amplification.  Sanders ESL Panel


 We supply an amplifier and electronic crossover with each speaker system.


To eliminate the usual customer complaint about having to buy two amplifiers to operate bi-amped speakers, Sanders supplies a bass amplifier as part of each speaker system.  The customer then only has to provide a single amplifier of his choice just as they would for any conventional speaker system.

These amplifiers are not cheap, underpowered, or Class D switching amplifiers.  They are multi-hundred watt, Class AB amplifiers that are very expensive, offer the finest in performance, come in beautiful chassis, and will drive the speakers with full dynamic range at realistic, concert hall levels.

When a speaker system is put in a room, it will interact with the room and this will have adverse effects on the sound.  Even a "perfect" speaker system will be degraded by the room.  It therefore is essential for all speakers to be adjustable to compensate for room effects.  The electronic crossovers used in Roger's speaker systems have extensive controls to allow the user to adjust the speaker to compensate for the flaws in his listening room.

This adjustability means that the user can make the speakers sound almost any way they wish.  It is no longer necessary to be "stuck" with the particular sound of a room/speaker combination as is the case with conventional speakers.  If you don't like what you hear with Sander's electrostatic speakers, you can adjust them so that they sound the way you like.


In summary, Sanders' speakers use the finest technology and design possible.


No compromise is made to either to reduce cost or sacrifice any aspect of speaker performance.   The combination of electrostatic mids/highs, transmission line woofers, and fully adjustable electronic crossovers makes it possible finally to have a speaker system that can do it all without compromise.

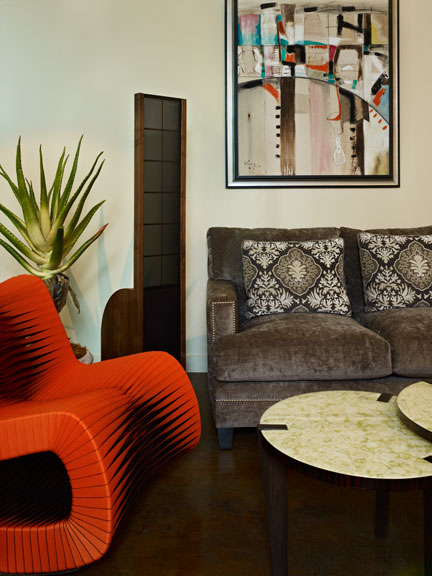

Sanders Sound Systems Electrostatic Speaker Model 10 in walnutSanders Sound Systems Electrostatic Speaker Model 11 in walnut

We now have three models available:

10c Full size speaker with digital crossover and Magtech Amplifier (left)

10d Latest version of Model 10
       with new bass driver and revised transmission line digital crossover and Magtech Amplifier (left)

11   Smaller version of the 10c; with digital crossover and ESL Mark II Amplifier (right)



10d -  Latest verison of the Model 10 speaker

with new bass driver and revised transmission line, digital crossover and  Magtech Amplifier; offered at $15,000.

The Model 10d will be offered in addition to the Model 10c and Model 11.










 What is the difference between our Model 10 and our Model 11 speakers?




















Model-10-Cherry-Front



Model-11-walnut-front

SPEAKER DIMENSIONS

MODEL 10

15" W x 18"D x 69" H
(38cm x 45cm x 175 cm)

MODEL 11

11" W x 13"D x 64" H
(29.9cm x 33cm x 162.6 cm)

SPEAKER NET WEIGHT
(assembled)

MODEL 10c
80  pounds (36kg)

Model 10d
90 pounds (40.8kg)

MODEL 11

60  pounds (27.3kg)

SHIPPING WEIGHT
5 boxes

Model 10c
Total shipping weight 250 lbs (113 kg)

Model 10d
Total shipping weight 270 lbs (122.5 kg)

MODEL 11

Total shipping weight 200 lbs
(90.9kg)

ESL PANEL SIZE

MODEL 10

15" x 42"
(38cm x 106.7cm)

MODEL 11

11" x 40"
(27.9cm x 101.6cm)

ESL POWER HANDLING

MODEL 10

Unlimited for any amplifier intended for domestic use

MODEL 11

Unlimited for any amplifier intended for domestic use

BASS DRIVER

MODEL 10

10"

MODEL 11

8"

BASS DESIGN

MODEL 10

Transmission Line

MODEL 11

Transmission Line

SENSITIVITY

MODEL 10

94 dB

MODEL 11

94 dB

FREQUENCY RESPONSE

MODEL 10

20 Hz. to 27 KHz. +/- 2 dB

MODEL 11

20 Hz. to 27 KHz. +/- 2 dB

CROSSOVER FREQUENCY

MODEL 10

User adjustable
Factory settings 172 Hz, 48 dB/octave slopes,  Linkwitz-Riley filter

MODEL 11

User adjustable
Factory settings 172 Hz, 48 dB/octave slopes,  Linkwitz-Riley filter

CROSSOVER DIMENSIONS

MODEL 10

17” W x 6” D x 1 ¾” H
(432.cm x 15.2cm x 4.4cm)

MODEL 11

17” W x 6” D x 1 ¾” H
(432.cm x 15.2cm x 4.4cm)

AMPLIFIER TYPE / POWER

MODEL 10

MAGTECH AMPLIFIER
500 watts RMS per channel into an 8 ohm load
900 watts RMS per channel into a 4ohm load

MODEL 11

ESL AMPLIFIER
360 watts RMS per channel into an 8 ohm load
700 watts RMS per channel into an 8 ohm load

AMPLIFIER DIMENSIONS

MODEL 10

17" wide x 5.5" tall x 16" deep
(43cm x 14cm x 40.6cm)

MODEL 11

17" wide x 5.5" tall x 16" deep
(43cm x 14cm x 40.6cm)

AMPLIFIER
WEIGHT

MODEL 10

52 pounds (23.6kg)

MODEL 11

52 pounds (23.6kg)





Two wood finishes available:
Sanders Sound Systems Electrostatic Speaker CherrySanders Sound Systems Electrostatic Speaker Walnut
Shown on left is a Model 10 in Natural Cherry & on right is a Model 11 in Natural Walnut
NEW! We have now added a black finish.

BEHIND THE SCENES



We sell Direct World-Wide  (along with select dealers) - Prices apply World-Wide - 30 Day In-Home Risk Free Trial

We are so confident in the design and build quality of our products, that we offer a

Sanders Sound Systems Lifetime Warranty
